Product Description

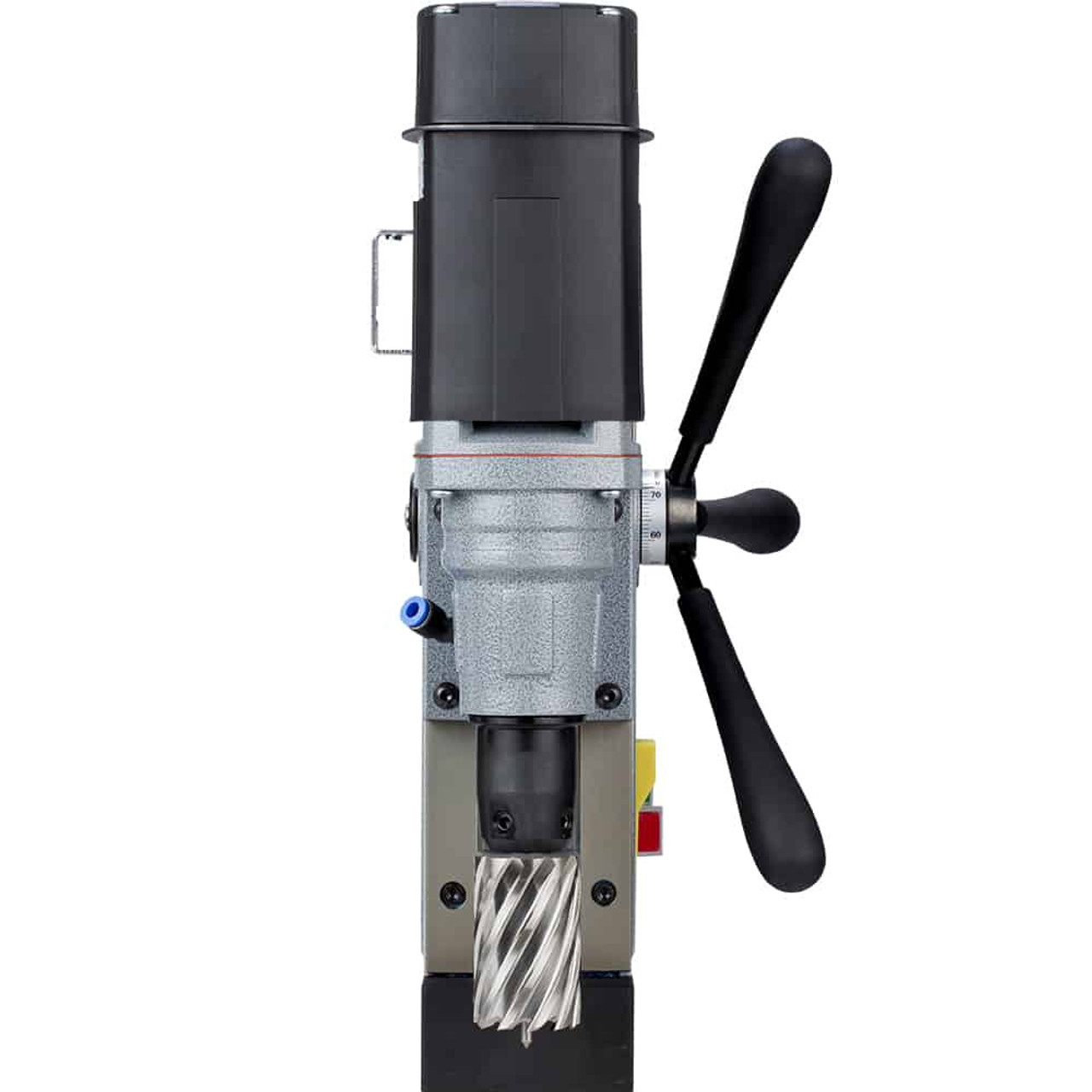

Euroboor ECO.40S+

Magnetic drilling machine

Ø 12 - 40 mm / 10.5 kg

The Euroboor ECO.40S+ magnetic core drilling machine with integrated motor cable, drills up to ø 40 mm (1 9/16”) and fits cutters up to 110 mm (4 5/16”) in length. Our portable ECO.40S+ magnetic core drilling machine benefits from an oil lubricated gearbox, but also from innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.

Category: Big scale fabrication

TECHNICAL DATA:

• Annular Cutters: 12 - 40mm Dia
• Twist Drills: 1 - 16mm Dia
• Countersinking: 10 - 45mm Dia
• Stroke: 145mm
• Weight: 10.5kg
• Magnetic Force: 1500kg
• Power: 1150W
• Speed (no load): 600min
• Speed (load): 380min
• Spindle: 19.05mm Weldon
• Voltage: 220 - 240V / 50 - 60Hz

This machine features:

• Lightest 40 mm magnetic drilling machine
• Fits cutters up to 110 mm DoC
• High-efficiency motor with less heat generation
• High-accuracy capstan hub
• One-speed oil lubricated gearbox
• Integrated tool cooling and lubrication
