Product Description

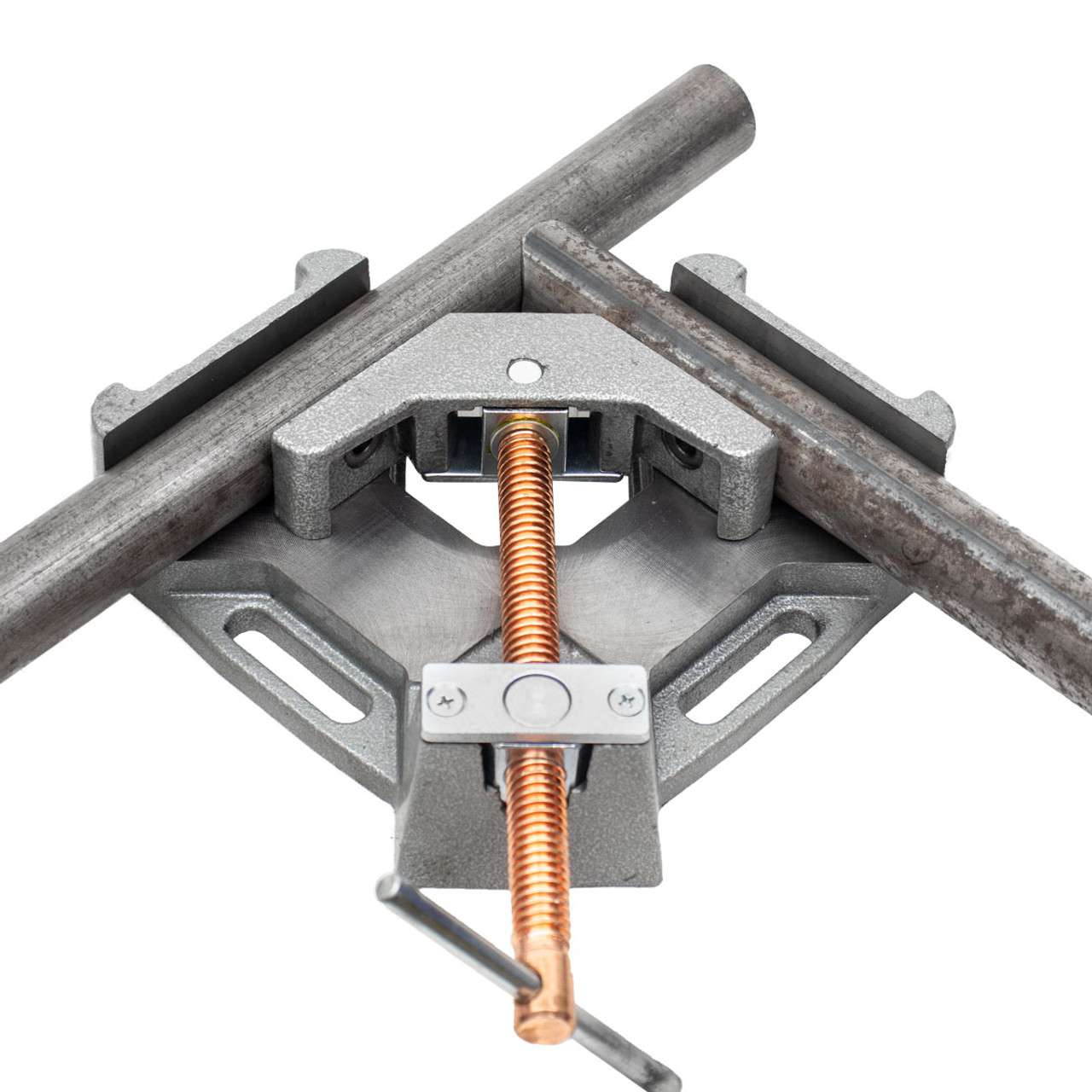

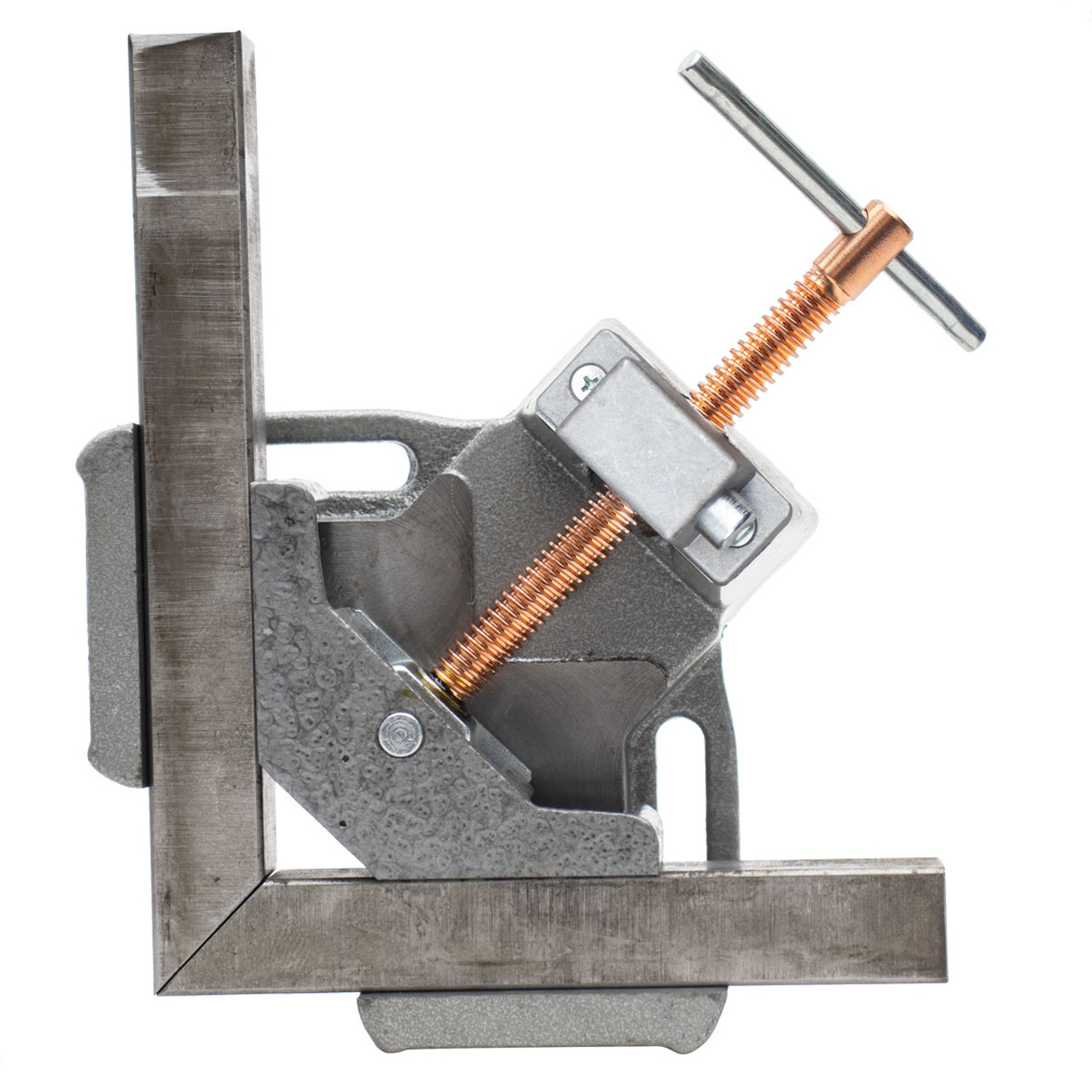

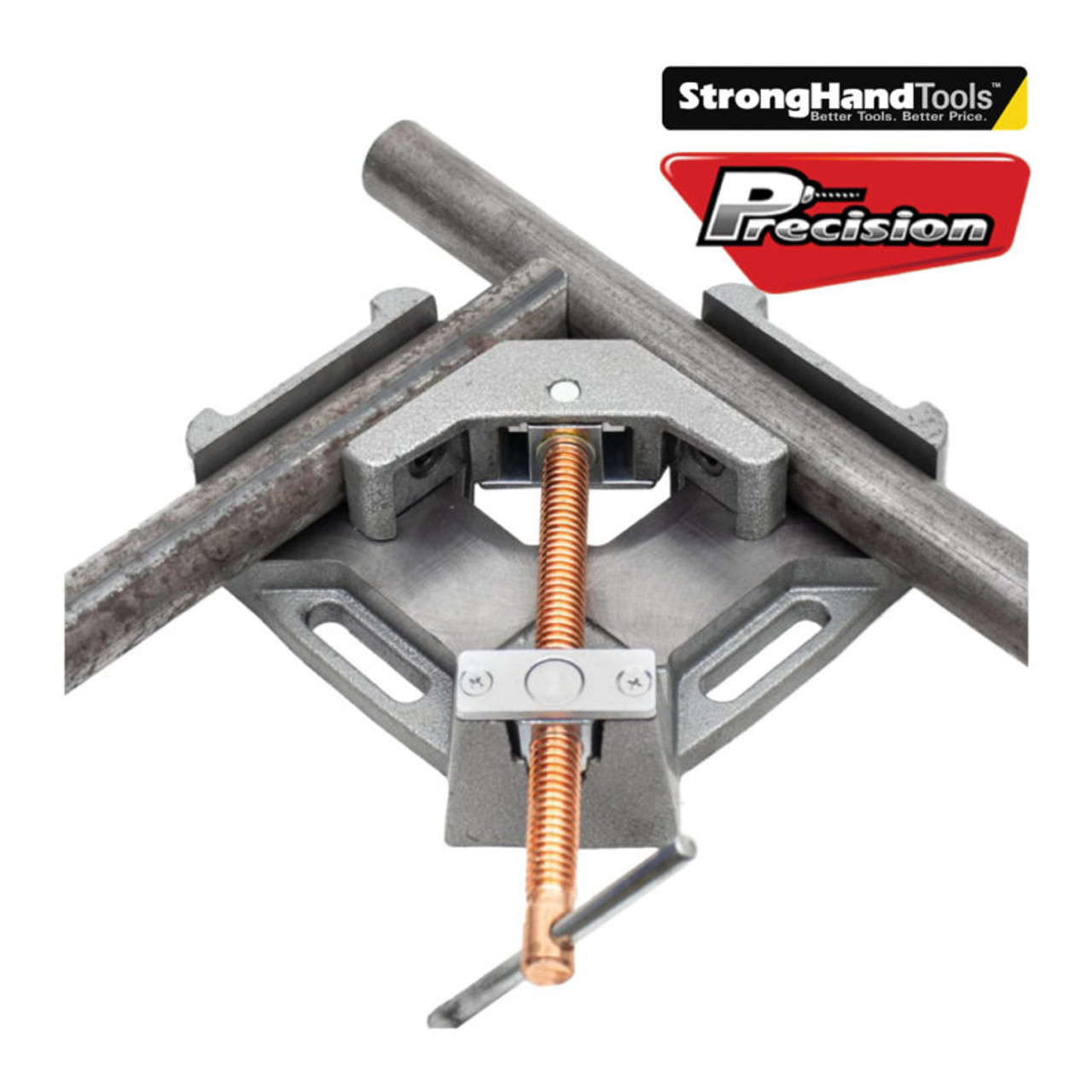

The best, secure, right angle clamping vise.
Manufactured from machined cast iron.
Machined outside faces - usable for upright joints.
Quick acting screw button for faster set up.
Stand-Off increases access
Machined welding fixtures made of ductile cast iron.
- Superb Weld Joint Access on all sides.
- Quick Acting Button for fast adjustment (WAC35D and WAC45 Models).
- Copper Plated Spindle Resists Weld Spatter.
Quick Acting Button
Press the Quick Acting Button (WAC35D & WAC45 models only) to allow the threaded screws to slide in and out for fast setup. (Release the button to re-engage the threaded screw for tightening.)
Machined Outside Faces
for upright joint.
Magnetic Rest Blocks
2 Magnetic Rest Blocks to support & level long stock! FREE with models: WAC35D, WAC45
| Part No. | Quick Acting Button | 2x Stand-offs | 2x Magnetic Rest Blocks | Machined on Outside Faces | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WAC22 | - | √ | - | √ | 1.4 | 0.4 | 2.5 | 3.1 | 1.9 | 1.3 | 6.0 |
| WAC34 | - | √ | - | - | 1.6 | 0.4 | 3.8 | 4.2 | 2.5 | 1.4 | 9.5 |
| WAC35D | √ | √ | √ | √ | 1.6 | 0.4 | 3.8 | 4.2 | 2.5 | 1.4 | 10.0 |
| WAC45 | √ | √ | √ | √ | 2.0 | 0.4 | 5.0 | 5.2 | 4.0 | 2.5 | 22.0 |
